说明：■额定温度：60℃&75℃
■额定电压：300Volts
■标准：JIS C3306
■导体使用单支或者绞合裸铜线。
■无铅聚氯乙烯绝缘
■无铅聚氯乙烯护套

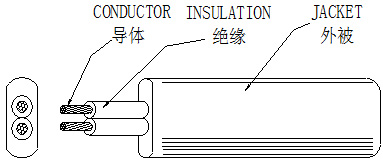

Product Type |
Cores |
Conductor |
Insulation |
Jacket |
|||
Sectional Area(mm2) |
Construction(NO/mm) |
Nom.thick |
Diam(mm) |
Nom.thick |
Nom.Diam(mm) |
||
截面积 |
线数/线径 |
厚度 |
直径 |
厚度 |
外径 |
||
HVCTFK/ |
2C |
0.75 |
30/0.18 |
0.60 |
2.40 |
1.00 |
4.4×6.6 |
1.25 |
50/0.18 |
0.60 |
2.75 |
1.00 |
4.7×7.4 |
||
2.00 |
41/0.25 |
0.60 |
3.15 |
1.00 |
5.2×8.0 |
||
Product Type |
Cores |
Conductor |
Insulation |
Jacket |
|||
Sectional Area(mm2) |
Construction(NO/mm) |
Nom.thick |
Diam(mm) |
Nom.thick |
Nom.Diam(mm) |
||
截面积 |
线数/线径 |
厚度 |
直径 |
厚度 |
外径 |
||
VCT/ |
2C |
0.75 |
30/0.18 |
0.80 |
2.80 |
1.70 |
8.80 |
1.25 |
50/0.18 |
3.10 |
9.60 |
||||
2.00 |
41/0.25 |
3.50 |
1.80 |
10.50 |
|||
3.50 |
45/0.32 |
4.20 |
12.00 |
||||
5.50 |
70/0.32 |
1.00 |
5.20 |
2.00 |
14.50 |
||
8.00 |
50/0.45 |
1.20 |
6.20 |
2.10 |
16.50 |
||
VCT/ |
3C |
0.75 |
30/0.18 |
0.80 |
2.80 |
1.70 |
9.20 |
1.25 |
50/0.18 |
3.10 |
10.50 |
||||
2.00 |
41/0.25 |
3.50 |
1.80 |
11.00 |
|||
3.50 |
45/0.32 |
4.20 |
1.90 |
13.00 |
|||
5.50 |
70/0.32 |
1.00 |
5.20 |
2.00 |
15.00 |
||
8.00 |
50/0.45 |
1.20 |
6.20 |
2.20 |
17.50 |
||
VCT/ |
4C |
0.75 |
30/0.18 |
0.80 |
2.80 |
1.70 |
9.90 |
1.25 |
50/0.18 |
3.10 |
1.80 |
11.50 |
|||
2.00 |
41/0.25 |
3.50 |
12.00 |
||||
3.50 |
45/0.32 |
4.20 |
2.00 |
14.00 |
|||
5.50 |
70/0.32 |
1.00 |
5.20 |
2.10 |
16.50 |
||
8.00 |
50/0.45 |
1.20 |
6.20 |
2.30 |
19.50 |
||
Product Type |
Cores |
Conductor |
Insulation |
||
Sectional Area(mm2) |
Construction(NO/mm) |
Nom.thick |
Nom.Diam(mm) |
||
截面积 |
线数/线径 |
厚度 |
外径 |
||
227 IEC 01(BV) |
1C |
1.50 |
1/1.38 7/0.52 |
0.70 |
2.90 3.10 |
2.50 |
1/1.78 7/0.68 |
0.80 |
3.45 3.80 |
||
4.00 |
1/2.25 7/0.85 |
0.80 |
4.00 4.30 |
||
6.00 |
1/2.76 7/1.04 |
0.80 |
4.50 5.00 |
||
10.00 |
7/1.35 |
1.00 |
6.40 |
||
16.00 |
46/0.25*6SOL |
1.00 |
8.00 |
||
Product Type |
Cores |
Conductor |
Insulation |
||
Sectional Area(mm2) |
Construction(NO/mm) |
Nom.thick |
Nom.Diam(mm) |
||
截面积 |
线数/线径 |
厚度 |
线径 |
||
PSE |
1C |
0.50 |
16/0.20 |
1.10 |
3.15 |
0.75 |
24/0.20 |
1.10 |
3.35 |
||
1.00 |
32/0.20 |
1.10 |
3.50 |
||
1.50 |
48/0.20 |
1.10 |
3.80 |
||
2.50 |
51/0.25 |
1.10 |
4.30 |
||
4.00 |
82/0.25 |
1.10 |
4.80 |
||
6.00 |
123/0.25 |
1.10 |
5.40 |
||
10.00 |
204/0.25 |
1.10 |
7.00 |
||
1C |
0.50 |
1/0.80 |
1.10 |
3.00 |
|
0.75 |
1/0.98 |
1.10 |
3.18 |
||
1.00 |
1/1.13 |
1.10 |
3.35 |
||
1.50 |
1/1.38 |
1.10 |
3.58 |
||
2.50 |
1/1.78 |
1.10 |
3.98 |
||
4.00 |
1/2.25 |
1.10 |
4.45 |
||
6.00 |
1/2.76 |
1.10 |
4.96 |
||
